Authentic Factory Products Showcase
Explore high-resolution photographs of our paper transport packaging solutions photographed directly from our manufacturing floor.

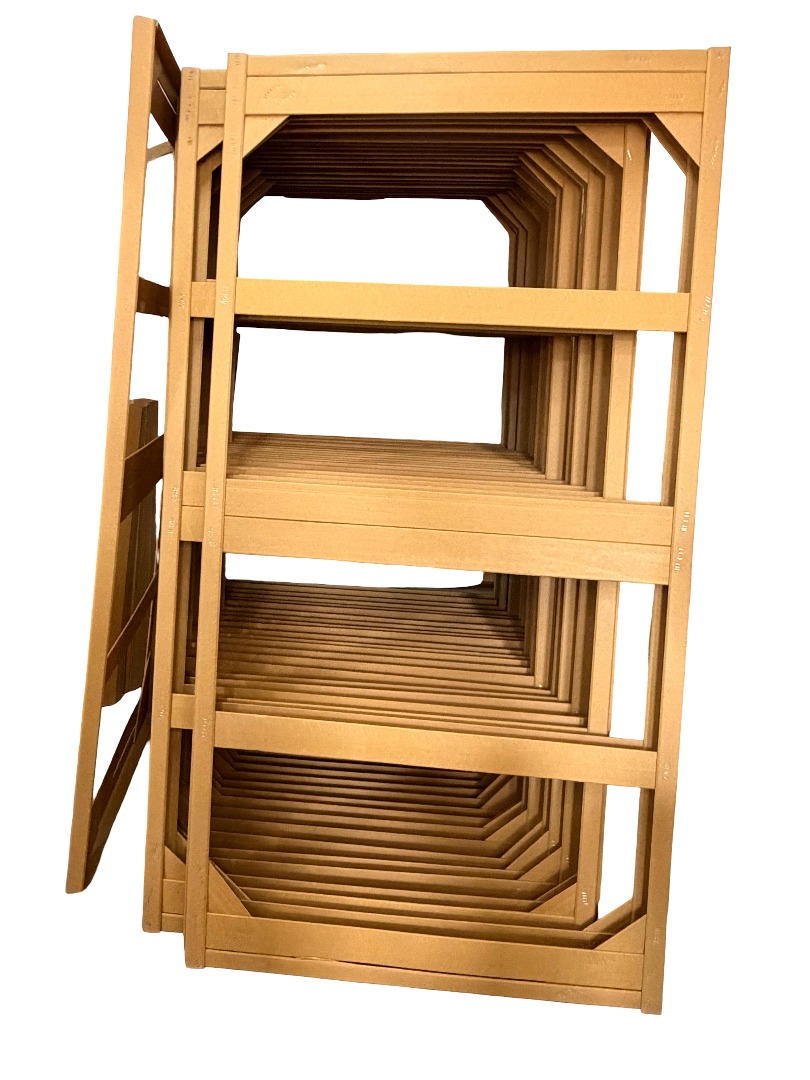

Customised Paper Frames (Modular Stack)
Precision-cut rigid framing systems for heavy solar panels and fragile flat sheet goods.

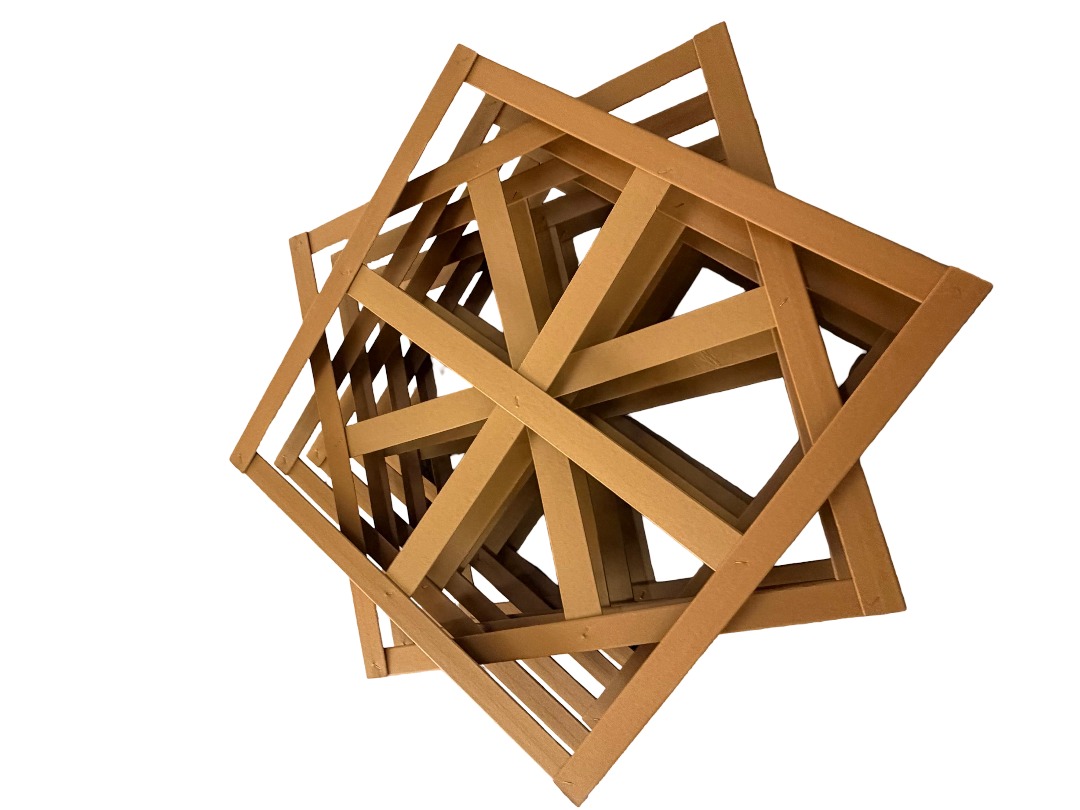

Criss-Cross Pallet Top Caps & Frames
High-strength interlocking diagonal bracing for superior cargo stabilization.
Kraft Angle Board Edge Protectors
Multi-layer laminated corner protectors providing uniform tension distribution.

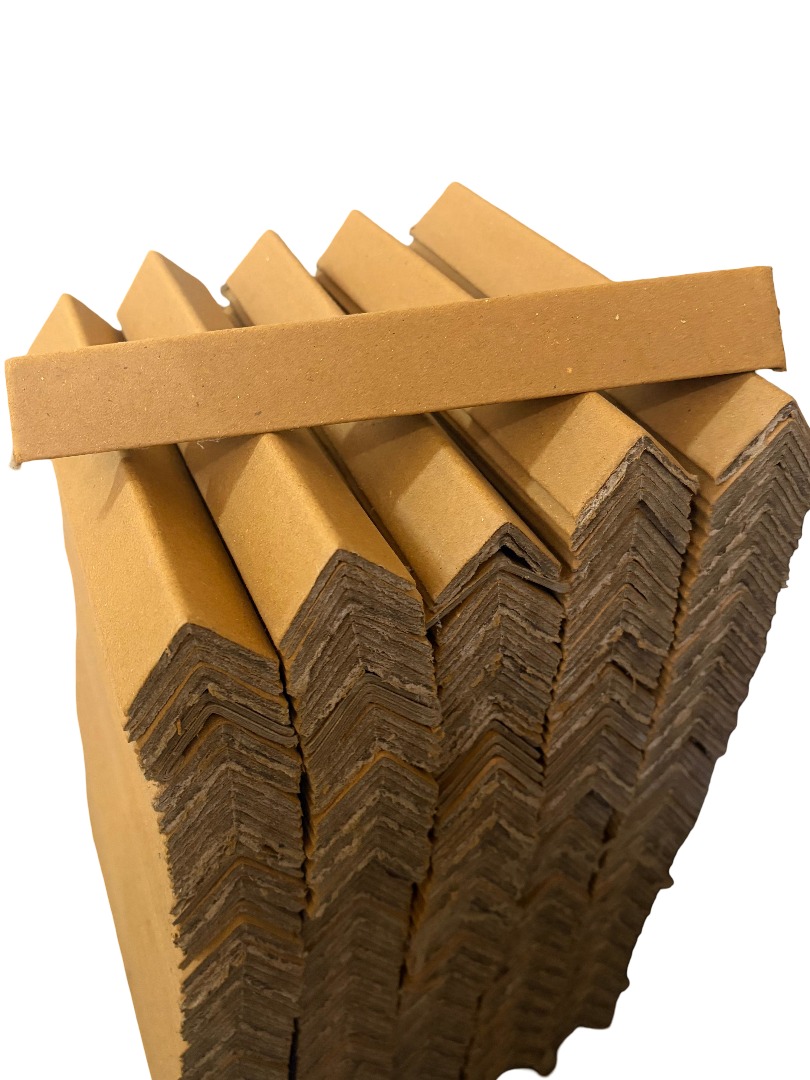

Heavy Caliper Pallet Angle Runners
High-density compressed kraft L-boards for high-tier container stacking.

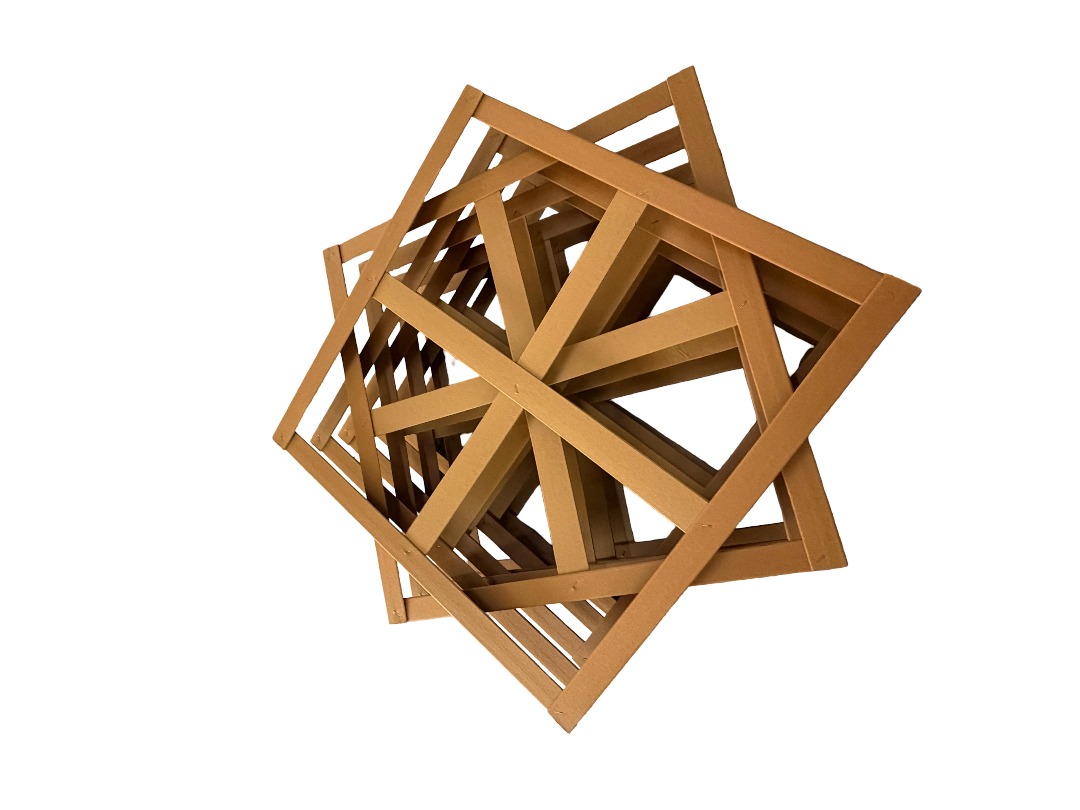

Multi-Point Braced Pallet Frames
Engineered paper framework designed to replace heavy wooden collars and crates.

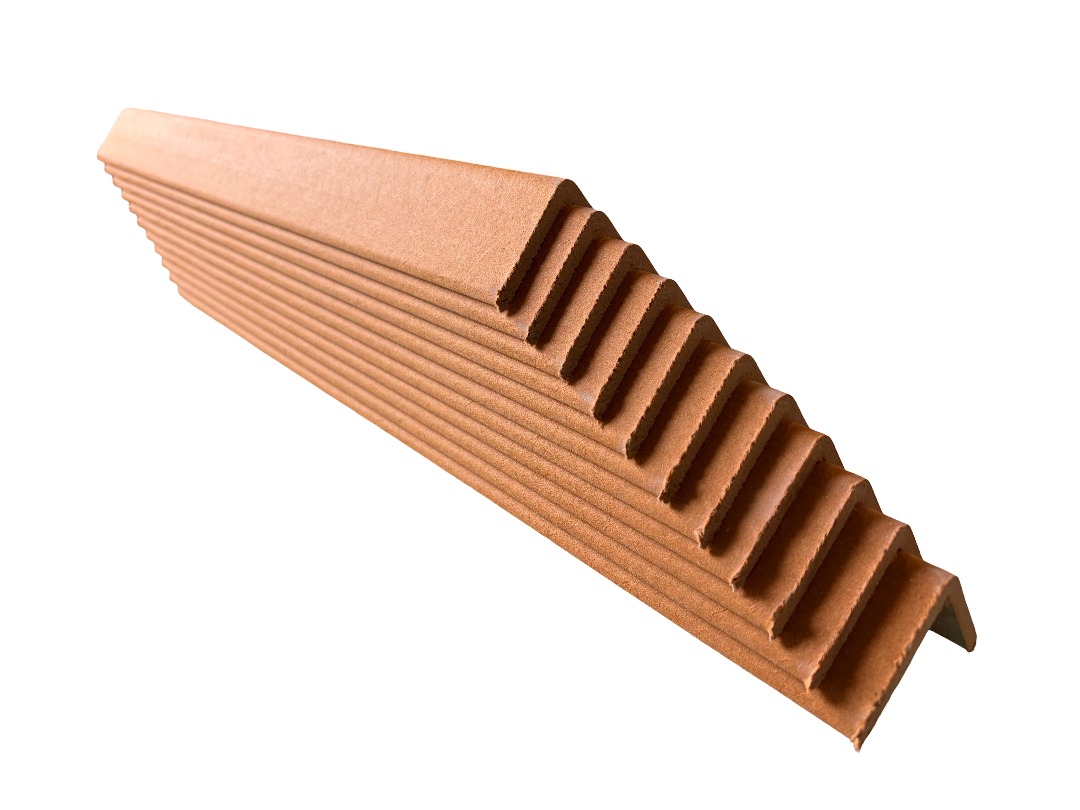

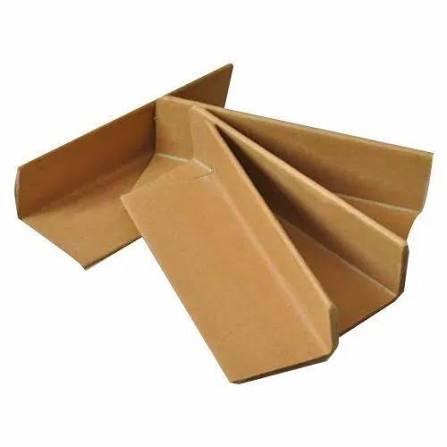

Tiered Angle Board Corner Protectors
Custom-sized corner protectors preventing rim denting and carton crush.
Industrial Paper Framing Stacks
High-capacity automated frame fabrication meeting large OEM delivery schedules.

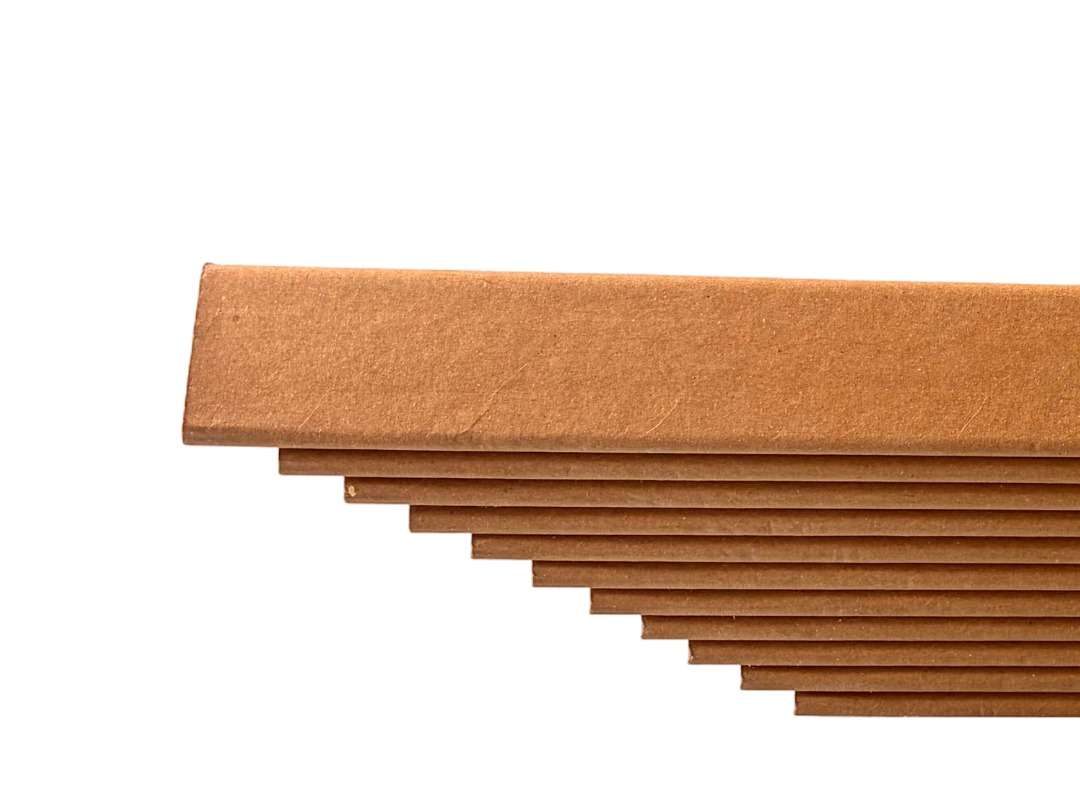

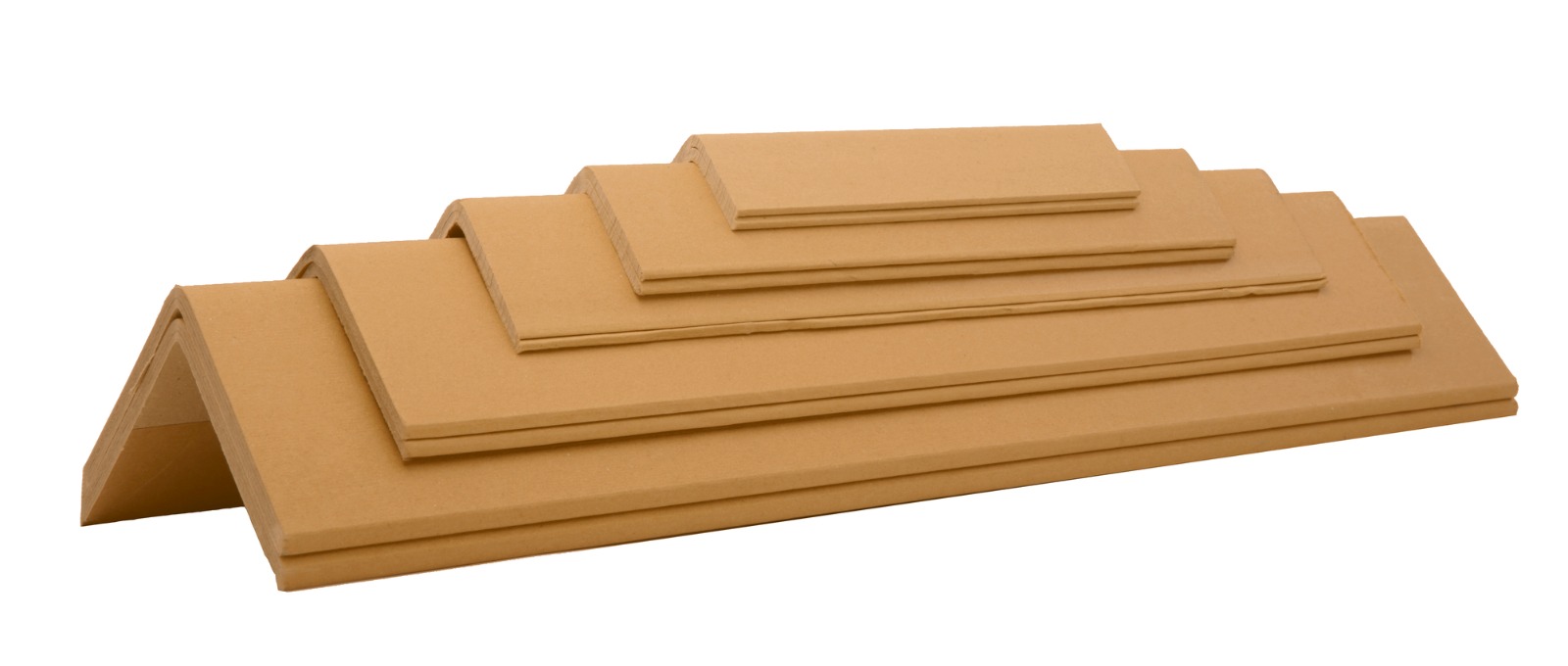

Multi-Caliper Kraft Board Profile
Consistent wing dimensions and thickness from 2.5 mm up to 10 mm caliper.

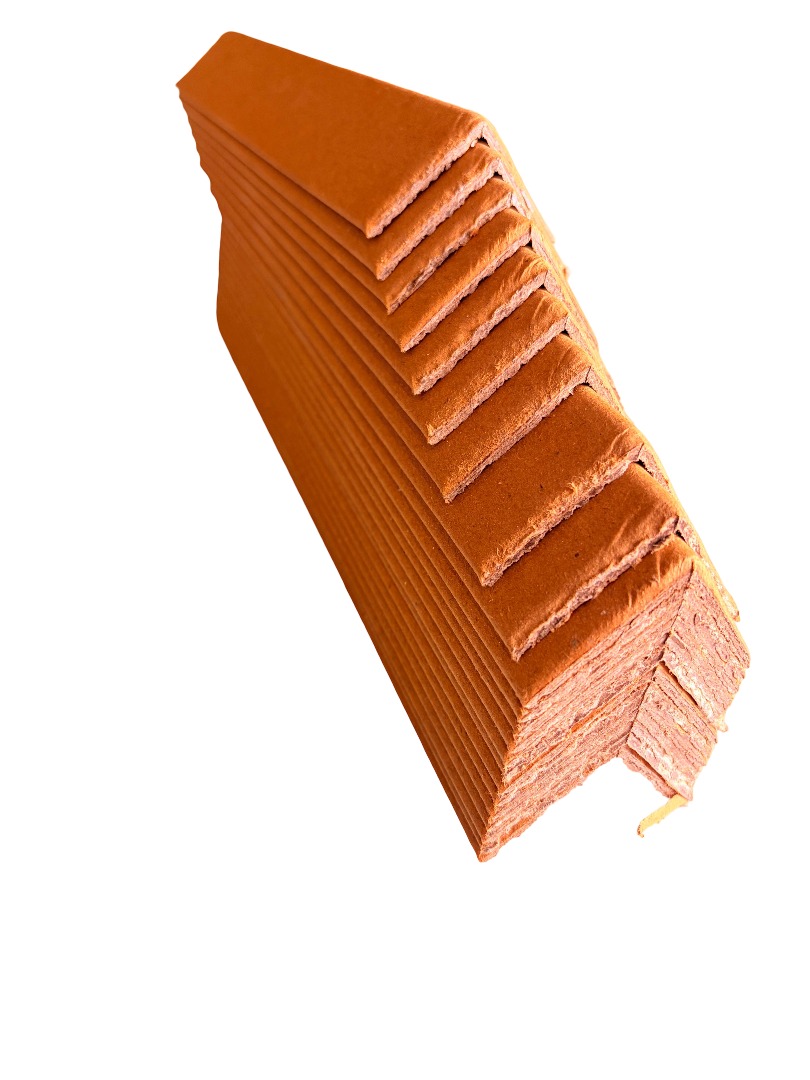

3D Corner Edge Protection Stack
High-strength vertical and horizontal angle guards for palletized consignments.

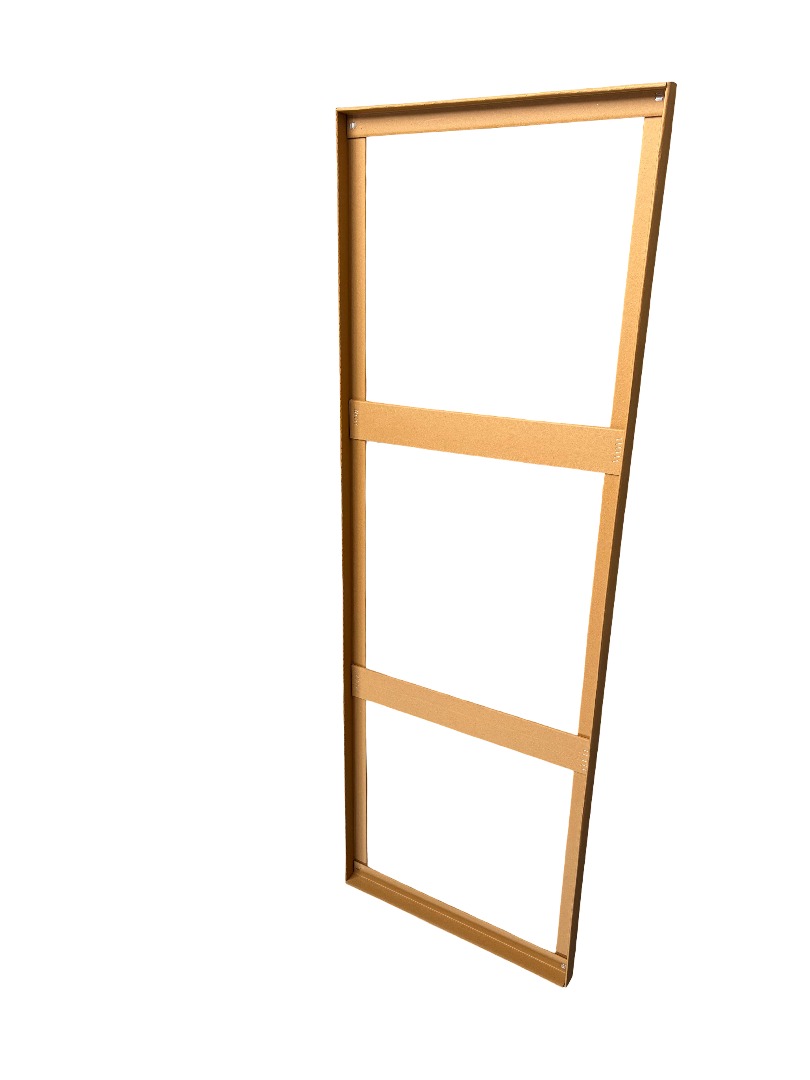

Single Tall Solar & Glass Frame
Custom dimensions with slotted corners for quick on-site assembly and packaging.

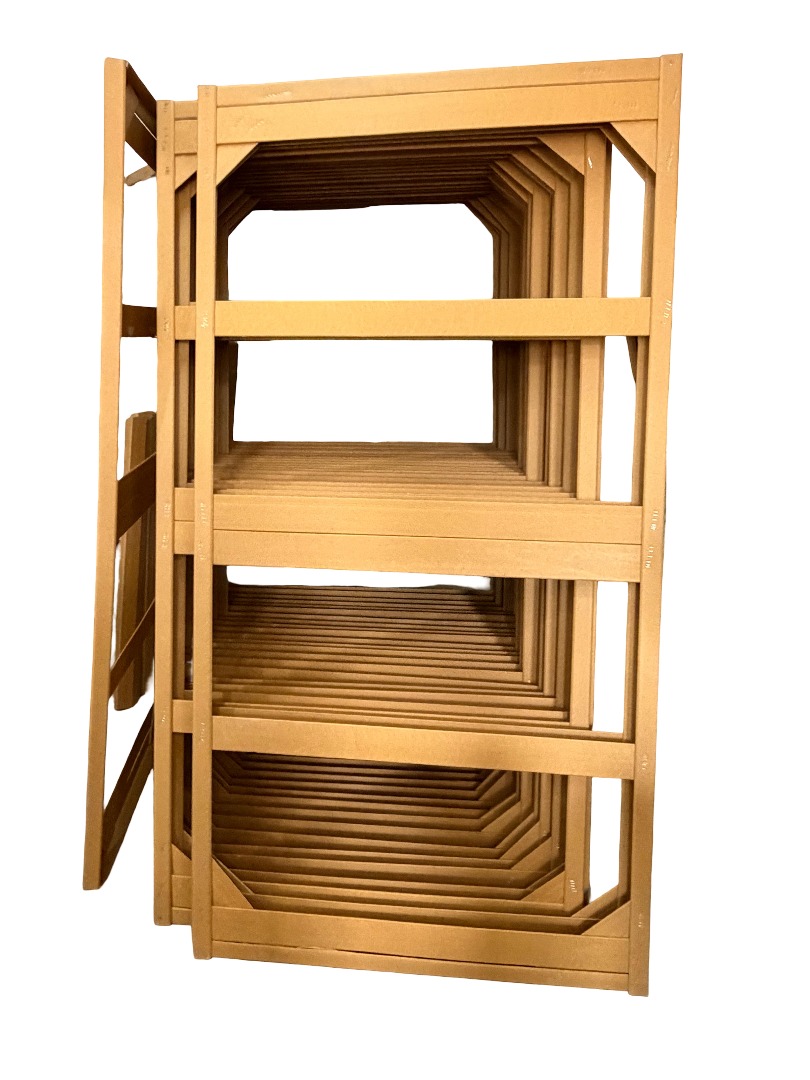

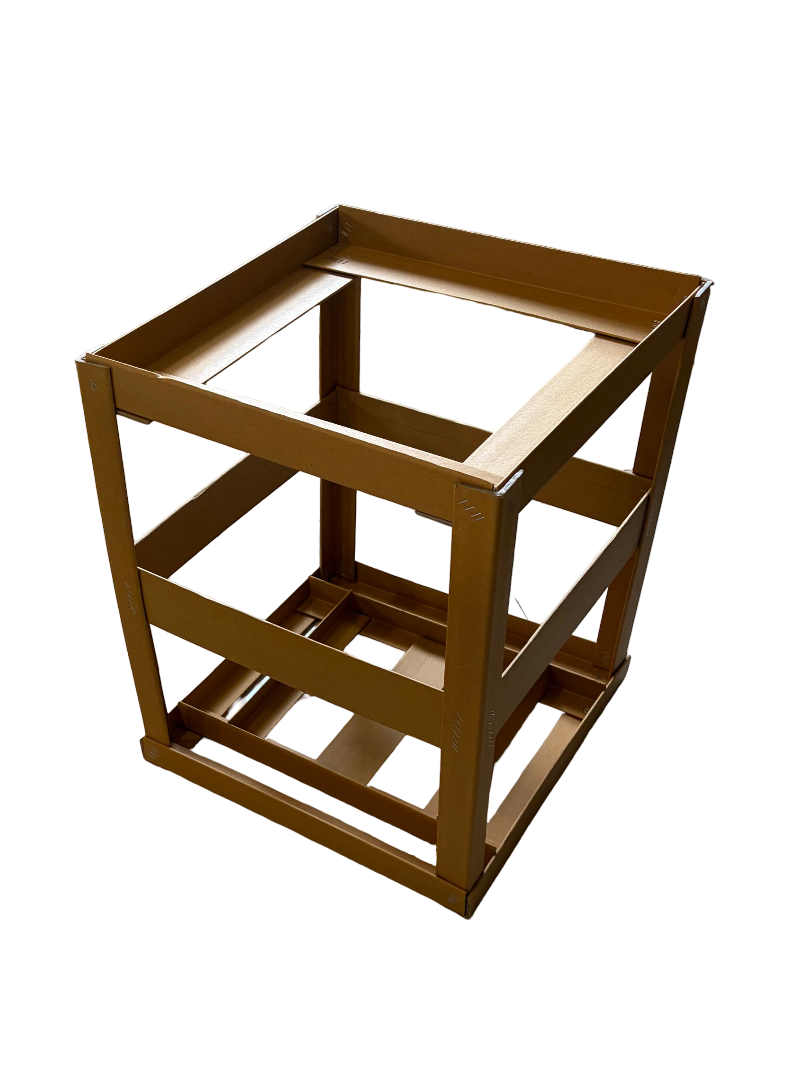

Pre-Assembled Packaging Frames
High-rigidity paper frame enclosures eliminating wood and plastic wrap.

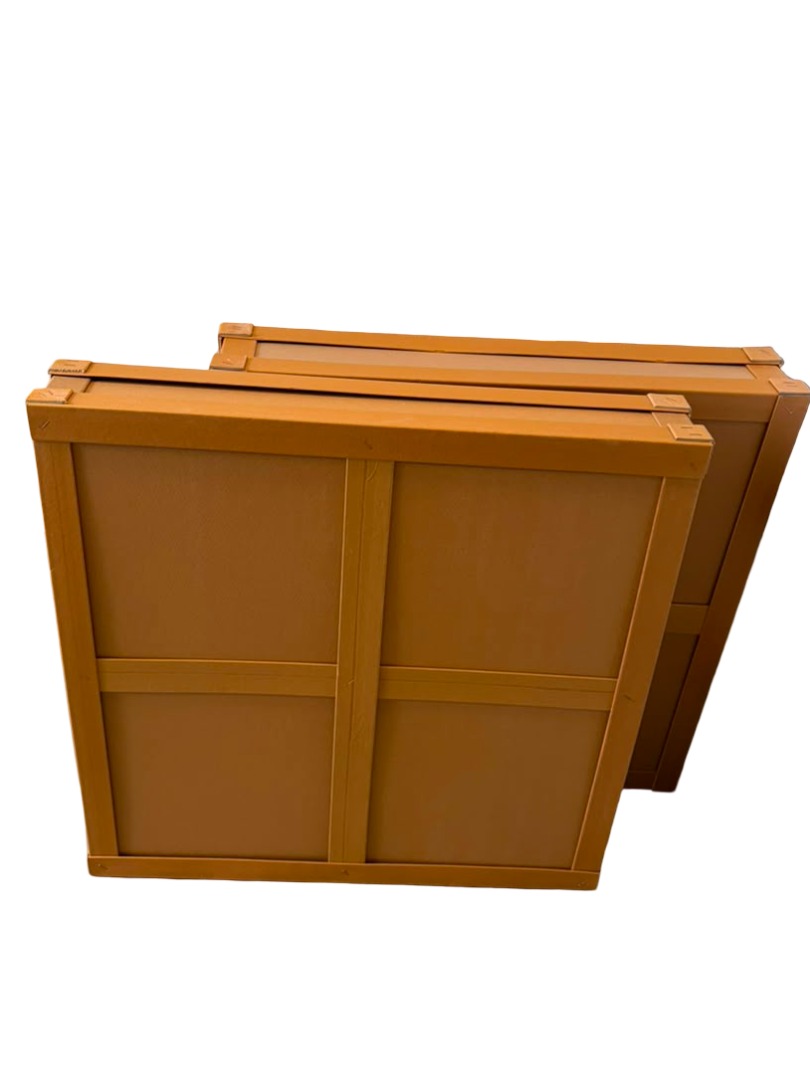

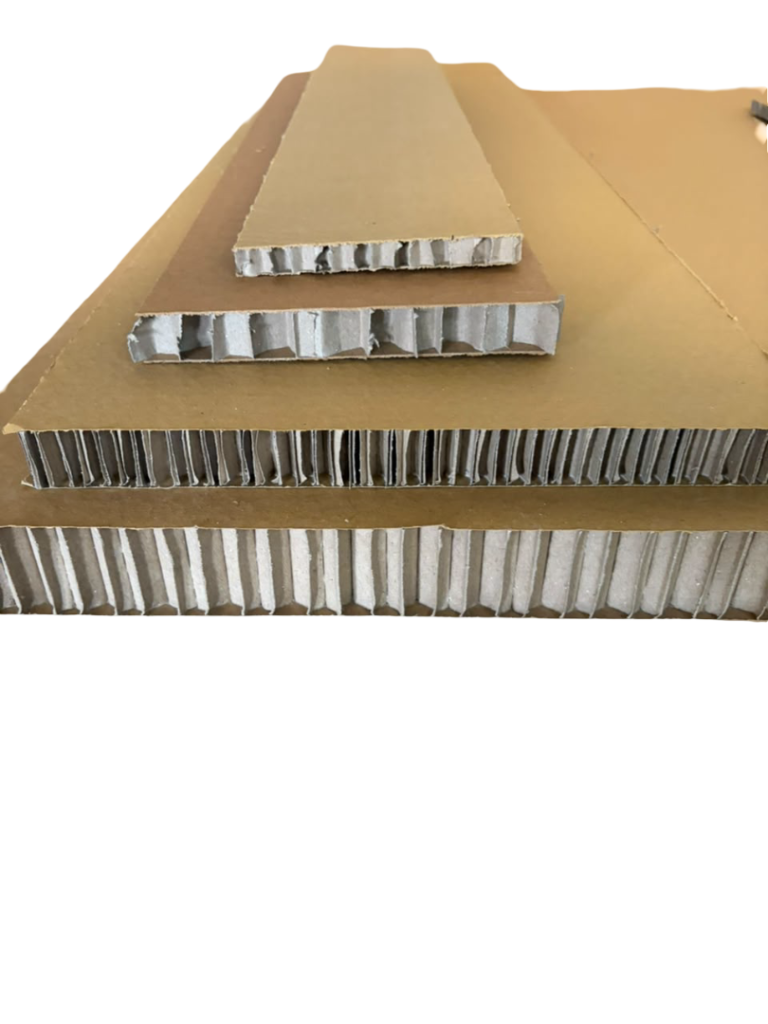

Heavy-Duty Honeycomb Export Boxes
75% lighter than timber crates, 100% ISPM-15 export compliant without fumigation.
Paper Honeycomb Runner Pallets
ISPM-15 exempt air & ocean freight pallet, zero splintering and zero nails.
Paper Angle Board Engineering & Material Specifications
A comprehensive technical guide to angle board construction, material options, dimensional customization, and industrial applications.
Engineered Multi-Ply Kraft Lamination for Maximum Rigidity
The basic structure of a paper angle board consists of multiple layers of high-strength kraft paper bonded together using advanced water-based or hot-melt adhesives. This precision-layered construction gives the angle board exceptional mechanical strength and rigidity, allowing it to absorb intense shocks and resist heavy compression forces during transport.
Being manufactured from 100% recycled paper fibers, paper angle boards are both completely eco-friendly and highly cost-effective — making them the preferred sustainable packaging choice for modern global supply chains seeking to eliminate unsustainable wood and plastic.
- Top Liner: Water-resistant or printable kraft facing
- Multi-Ply Core: Dense laminated high-GSM paperboard plies
- Adhesion Matrix: Eco water-based / hot-melt bonding
- 90° Apex Apex Form: Rigid angle profile resisting up to 10mm caliper
Edge Protection Material Options
Comparing standard edge board material formulations across durability, environmental compliance, and target transport scenarios.
Key Dimensions & Custom Engineering Parameters
Paper angle boards are available in a wide range of sizes and thicknesses tailored to your specific application requirements.
Leg Length (Wings)
25 mm – 100 mm (1.5" – 4")The width of the two flat sides, customized in equal or unequal profiles to match carton rims and pallet perimeters for seamless fitment.
Thickness (Caliper)
2 mm – 8 mm+ (0.06" – 0.50")Gauge of the material, precision-calibrated based on stacking weight, strapping tension, and required vertical compression strength (up to 10mm).
Length (Span)
Few Inches to 10+ FeetTotal height or span, cut anywhere from small 50mm box corner protectors to over 10 feet (3+ meters) for full pallet load height stabilization.
Custom Printing
1 & 2-Color Flexo PrintPrinted versions available for branding purposes, company logos, safety handling warnings, barcode identification, and SKU instructions.
Common Industrial Applications
How global industries utilize paper angle boards to eliminate transit damages, stabilize palletized goods, and enhance load unitization.
Agricultural Shipping
Stabilizes stacked crates of fresh fruits and produce in refrigerated trucks and export containers, preventing corner crushing and load shifting during transit.
Appliance Packaging
Protects the sharp corners and delicate pre-finished exteriors of washing machines, refrigerators, and electronics from scratches, impacts, and strap cutting.
Industrial Palletizing
Reinforces heavy cargo loads of construction bricks, ceramic tiles, and chemical drums, distributing high-tension strapping pressure across all corners.
Furniture Transit
Shields vulnerable solid wood edges, veneer tabletops, and modular cabinetry from impacts, corner chipping, and transit scuffs during freight delivery.
Eco Impact & Packaging Estimator
Select your cargo parameters to estimate how much plastic and CO2 your supply chain will save by switching to VIGA Paper TPM.
